The Complete Guide to Garden Shed Foundations: Getting Your Base Right Before You Build

You've finally decided on the perfect garden shed for your backyard. Maybe it's a sleek Giantz model, a sturdy Wolloroo, or a premium SpanBilt design. You can already picture it organised with your tools, bikes, or outdoor equipment. But here's the thing most first-time shed buyers don't realise - the foundation you choose now will determine whether your shed lasts 5 years or 25 years.

I've spoken with hundreds of Australian homeowners over the past year, and the foundation question always comes up. "Do I really need concrete?" "Can I just put it on the grass?" "How much bigger should the base be than the shed?" These are smart questions, and getting the answers right will save you thousands in repairs down the track.

Let's walk through everything you need to know about shed foundations, so you can make the right choice for your situation, budget, and shed size.

Why Your Shed Foundation Actually Matters More Than You Think

Picture this: you've spent $2,000 on a quality garden shed, assembled it over a weekend with your mates, and six months later the doors won't close properly. The floor feels uneven. There's a noticeable lean. What went wrong? Nine times out of ten, it's the foundation.

A proper foundation does three critical jobs. First, it keeps your shed level, which means doors that open smoothly and walls that stay aligned. Second, it protects against moisture from the ground, preventing rust on metal sheds and rot on timber structures. Third, it provides stability against Australia's weather extremes - from summer heat expansion to winter storms.

Without a solid base, you're not just risking a wonky shed. You're potentially voiding your warranty, creating drainage problems, and inviting pests. The good news? Getting it right isn't as complicated or expensive as you might think.

Understanding Shed Size and Foundation Requirements

The size of your shed dramatically changes what foundation you need. Let's break this down into practical categories based on the sheds we stock at Smart Storage.

Small Sheds (Under 2m x 2m)

These compact storage solutions are perfect for garden tools, bikes, or outdoor toys. For sheds in this range, you have the most flexibility. A well-prepared gravel base with concrete pavers or treated timber sleepers works beautifully. The key is creating a flat, level surface that sits slightly above ground level for drainage.

If you're going the paver route, you'll want pavers at least 400mm x 400mm in size, arranged in a grid pattern. The total base should extend about 50-100mm beyond your shed's footprint on all sides. This overhang gives you working room during assembly and helps with water runoff.

Medium Sheds (2m x 2m to 4m x 4m)

Once you step up to this size, the stakes get higher. These sheds often store heavier equipment like lawn mowers, or they might serve as workshops. Here, we strongly recommend either a concrete slab or a robust timber frame foundation with compacted gravel.

For concrete, you're looking at a minimum thickness of 85-100mm for residential applications, following Australian Standards AS 2870 and AS 3600. The slab should be 100-150mm larger than your shed on all sides. This extra space is crucial for proper anchorage and to prevent erosion undermining your foundation over time.

Large Sheds (Over 4m x 4m)

Premium sheds like our larger Wolloroo and SpanBilt models demand serious foundations. At this size, a concrete slab isn't just recommended - it's essential for long-term stability. You'll also need to think about council requirements, as structures over 10 square metres often require permits in most Australian states.

The concrete for these larger structures should be 100mm thick minimum, with proper reinforcement using steel mesh or rebar. Your slab needs to extend 150-200mm beyond the shed walls, and you'll want to incorporate proper drainage considerations in your design.

The Five Main Foundation Types: Pros, Cons, and When to Use Each

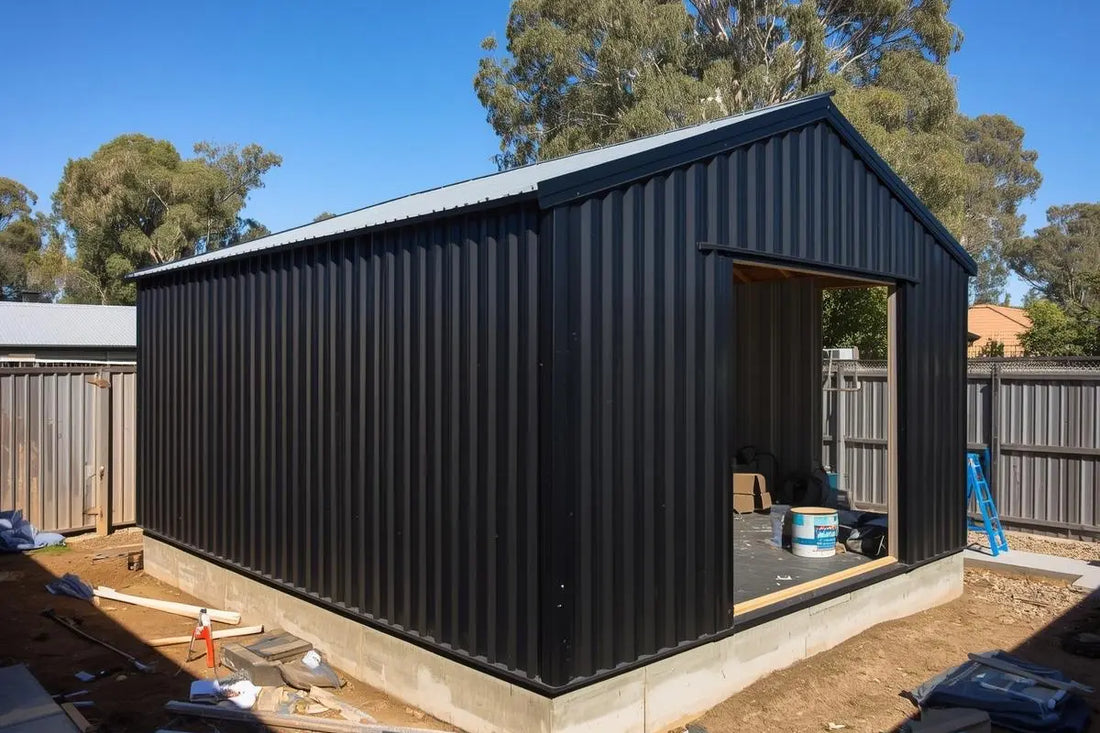

1. Concrete Slab Foundation (The Gold Standard)

A poured concrete slab is the Mercedes of shed foundations. It provides an incredibly stable, level surface that doubles as your shed floor. It handles heavy loads, resists moisture brilliantly, and will outlast the shed itself.

When to use it: Any shed over 2m x 2m, locations with poor drainage, if you're storing heavy equipment, or when you want the absolute best foundation possible.

The reality: Expect to pay more upfront, and you'll need to wait about a week for curing before shed assembly. The process involves excavation, formwork, a compacted gravel base, reinforcement, and the pour itself. If your site isn't level, you may need to bring in fill material and install concrete piers through the fill to natural ground.

Critical tip: Never pour your slab before finalising your shed dimensions. Even small discrepancies between your planned shed size and actual product size can create major headaches.

2. Concrete Pavers on Gravel

This method offers excellent value and surprising durability for small to medium sheds. You're creating a stable platform using concrete pavers (typically 400mm x 400mm) set on a well-compacted gravel base.

When to use it: Small to medium sheds around 3m x 3m, reasonably level sites, when budget is a concern but you still want quality.

The process: Excavate 100-150mm deep, install landscape fabric, add 75-100mm of compacted gravel (do this in 25mm layers for best results), then lay your pavers in a grid pattern. The pavers should be level across the entire pad, checked with a long spirit level or laser level.

The catch: You need a site that's already relatively level. Trying to use pavers on a slope is asking for trouble.

3. Treated Timber Frame with Gravel

This creates a raised platform that offers excellent ventilation and drainage. You're essentially building a strong timber frame using treated pine rated for ground contact, filling it with compacted gravel, and setting it slightly above ground level.

When to use it: Small to medium sheds, sites with mild slopes, areas with excellent natural drainage, when you want good air circulation under the shed.

The build: Use timber rated H4 or higher for ground contact. Your frame should be 100-150mm wider than your shed on all sides. Set the timber on concrete spacers or pier blocks for support. Fill the frame with 75-100mm of compacted gravel, and place your shed on runners attached to the frame.

Watch out for: Timber foundations require more maintenance checks every few years to ensure the timber hasn't degraded, even when treated.

4. Concrete Pier Foundation

This involves setting multiple concrete footings into the ground at strategic points, then building your shed floor frame on top of these piers. It's excellent for uneven terrain and provides superb ventilation.

When to use it: Sloped sites, areas with frost concerns (rare in most of Australia but relevant in alpine regions), when you want maximum underside ventilation.

The setup: You'll need piers at each corner and every 2-3 metres along the walls. Each pier should be at least 300mm deep, or below your local frost line. The piers support treated timber runners, which in turn support your shed floor frame.

Important: This method requires careful planning to ensure all piers are level with each other. Professional help often pays for itself here.

5. Grass or Dirt (The "I'm Feeling Lucky" Option)

Let's be honest - some people will place their shed directly on grass or dirt. Can it work? Sometimes. Should you do it? Almost never.

When it might be acceptable: Only for very small sheds (under 2m x 2m), temporary installations, or in exceptionally dry climates with excellent natural drainage.

The problems: Ground moisture will attack your shed from below, causing rust or rot. Uneven settling means doors that won't close. Pests have easy access. Your shed could shift or sink, especially after rain.

Our recommendation: Even if budget is tight, invest in at least a basic paver foundation. Your future self will thank you.

How Much Bigger Should Your Foundation Be?

This is one of those details that separates amateur installations from professional ones. The right overhang depends on your foundation type and shed size, but here are the standards I recommend:

• Small sheds (under 2m x 2m): 50-100mm overhang on all sides
• Medium sheds (2m-4m): 100-150mm overhang
• Large sheds (over 4m): 150-200mm overhang

Why does this matter? That extra space gives you room to properly anchor your shed, prevents erosion at the foundation edge, provides a walkway for maintenance access, and creates a clean visual appearance.

When you're marking out your foundation, use your shed's actual dimensions - not the product name. A "3x3 metre shed" might actually measure 3050mm x 3050mm once you account for wall thickness and design features.

Foundation Depth: Getting Below the Surface

How deep you need to go depends on your foundation type and what you're digging into.

For gravel and paver bases: Excavate 100-150mm deep. This gives you room for a solid gravel base that won't shift over time. In sandy soils, you might go slightly shallower. In clay, slightly deeper helps with drainage.

For concrete slabs: Most residential slabs are 85-100mm thick, sitting on a 75-100mm compacted gravel base. Your total excavation depth will be around 175-200mm. The gravel base is crucial - it provides drainage, prevents ground movement from affecting your slab, and gives you a stable working surface for your concrete pour.

For pier foundations: Each pier hole should be at least 300mm deep and 300mm diameter. In areas with ground movement concerns, go deeper. Your concrete pier should extend slightly above ground level to keep timber runners dry.

Preparing Your Site: The Foundation of Your Foundation

Before you install anything, proper site preparation makes all the difference.

Start by choosing a location that's as level as possible and doesn't collect water. Trust me on this - trying to build on a site that floods after every storm will cause endless headaches. Look for natural high ground and observe where water flows during rain.

Clear the area of all vegetation, roots, and debris. That lawn might look fine, but organic material under your foundation will decompose, creating voids and uneven settling. Strip everything back to stable soil.

Mark out your foundation area using string lines and corner stakes. Check your measurements twice. Make sure your foundation is square by measuring the diagonals - if they're equal, you're square.

Level the site within your excavation. For small variations (under 50mm), you can adjust with your gravel base. For larger differences, you might need to cut away high spots or add compacted fill to low areas. If you're adding fill, do it in 50mm layers, compacting each layer thoroughly.

Install landscape fabric before adding gravel. This simple step prevents weed growth and stops gravel from migrating into the soil below.

Concrete vs Treated Pine vs Pavers: Making the Right Choice

Each foundation type has its sweet spot. Here's how to decide:

Choose concrete when:

• Your shed is over 3m x 3m
• You're storing heavy equipment
• You want the longest-lasting option
• The shed is a permanent fixture
• You can afford the higher upfront cost

Choose treated timber when:

• You have a small to medium shed
• Your site has a gentle slope
• You want good ventilation
• You might relocate the shed someday
• You're comfortable with basic DIY carpentry

Choose pavers when:

• Your site is already reasonably level
• You want a middle-ground option for cost and quality
• Your shed is under 4m x 4m
• You prefer a job you can complete in a weekend
• You want flexibility to expand or modify later

What to Put on Your Base: The Floor Question

Whether you need an actual floor system on your foundation depends on your setup.

With a concrete slab: The slab is your floor. Some people add rubber matting or interlocking floor tiles for comfort, but the concrete itself is sufficient. Just ensure proper drainage away from the slab edges.

With pavers or gravel: Most sheds come with a floor frame as part of the kit. This timber frame sits on top of your paver base, creating an elevated, ventilated floor. The air gap between your shed floor and the base is actually beneficial - it prevents moisture buildup and deters pests.

With pier foundations: You'll build a complete floor frame on top of the piers. This frame typically uses 90x45mm or 70x45mm treated pine joists, topped with plywood or timber flooring. The floor frame is part of what you're buying when you get most quality shed kits.

One often-overlooked detail: regardless of your foundation type, consider the door threshold. You want a smooth transition when wheeling equipment in and out. With concrete slabs, this is automatic. With elevated foundations, you might need to build a small ramp or step.

Making Your Foundation Safe and Secure for Decades

A proper foundation isn't just about the initial build - it's about longevity. Here's how to ensure your investment stands the test of time.

Anchoring is non-negotiable: In Australia's variable climate, properly anchoring your shed prevents wind damage and movement. For concrete slabs, use expansion bolts or chemical anchors through the shed's base plate. For timber foundations, use coach screws or through-bolts. For paver bases, anchor brackets can be attached to the shed and concreted into the ground at corners.

Water management makes or breaks foundations: Even the best foundation fails if water pools around it. Grade the surrounding ground away from your shed with a minimum 1:50 slope (that's a 20mm drop per metre). Consider installing a simple gravel drainage channel around the perimeter if your site has drainage challenges. Never let downpipes or natural water flow dump directly against your foundation.

Periodic inspection catches problems early: Once a year, walk around your shed and check for settling, check that anchor bolts are tight, look for cracks in concrete, inspect timber for rot or insect damage, and ensure drainage is still working properly. (see our shed maintenance guide)

Future-proof with proper sizing: Here's something I wish more people considered: if you're on the fence between foundation sizes, go larger. That extra investment now gives you flexibility if you upgrade to a bigger shed later, provides more stable anchorage, improves drainage effectiveness, and creates a cleaner final appearance.

Common Foundation Mistakes to Avoid

After years of seeing shed installations, these mistakes come up repeatedly:

Mistake 1: Building the foundation before finalising shed specifications. Always confirm exact shed dimensions first. Those "3x3 metre" sheds might be 3050mm in reality.

Mistake 2: Inadequate compaction of gravel bases. Loose gravel settles over time, creating an unlevel base. Compact in thin layers using a plate compactor, not just by stomping on it.

Mistake 3: Skipping the drainage planning. Water is your foundation's enemy. Always, always plan for where water will go.

Mistake 4: Using untreated timber in ground contact. This seems obvious, but I see it happen. Only use timber rated H4 or higher for any ground-contact applications.

Mistake 5: Not checking for underground services. Before digging anything, call 1100 to locate underground utilities. It's free, it's quick, and it could save your life.

Mistake 6: Ignoring local regulations. In most Australian states, sheds over 10 square metres need permits. Check with your local council before starting. The fine for unpermitted work far exceeds the permit cost.

When to Call a Professional

DIY foundation work is absolutely doable for many homeowners, but knowing when to get help is important.

Consider professional help when:

• You're pouring a concrete slab larger than 3m x 3m
• Your site has significant slope or drainage issues
• You're working with challenging soil conditions (heavy clay, very sandy, or reactive soils)
• You need to install piers through fill material
• Local regulations require certified work
• You don't have access to proper compaction equipment

The cost of professional foundation installation typically ranges from $800-$2,500 depending on size and complexity. While that seems like a lot, fixing a failed DIY foundation often costs more - plus you lose time and face the hassle of removing and reinstalling your shed.

Your Foundation Checklist: Before You Start

Before breaking ground, make sure you can tick every box:

✓ Confirmed exact shed dimensions from the manufacturer
✓ Checked local council requirements and obtained any needed permits
✓ Called 1100 to locate underground services
✓ Assessed site drainage and planned water management
✓ Chosen the appropriate foundation type for your shed size
✓ Calculated materials needed (including 10% extra for waste)
✓ Arranged necessary equipment (plate compactor, level, etc.)
✓ Verified all timber is properly rated for ground contact
✓ Planned for proper shed anchoring
✓ Set aside enough time for proper curing (concrete) or settling (gravel)

Final Thoughts: Getting It Right the First Time

Here's the truth about shed foundations: they're not the exciting part of your project. Nobody daydreams about compacting gravel or calculating foundation overhangs. But they're the difference between a shed that's still standing strong in 20 years and one that's a headache in 2 years.

At Smart Storage, we've helped hundreds of Australian families choose the right sheds for their needs, and we've seen firsthand how proper preparation pays off. Whether you go with our Giantz, Wolloroo, or SpanBilt models, taking the time to build a solid foundation ensures you'll be enjoying your organised, clutter-free space for decades to come.

The foundation work might take a weekend, but that weekend investment protects everything you store inside and preserves your overall investment. Get this part right, and the rest of your shed project will be smooth sailing.

Got questions about the right foundation for your specific shed or site? That's what we're here for. Chat with us directly - we're a family business, and you'll be talking to real people who genuinely want to help you succeed.

---

Important Note: This guide provides general information about shed foundations for typical Australian residential applications. Every site is different, with unique soil conditions, drainage patterns, and local requirements. We strongly recommend consulting with a qualified builder, engineer, or your local council for site-specific advice, especially for larger structures, challenging sites, or areas with specific building code requirements. If you're unsure about any aspect of your foundation project, professional guidance is always worth the investment.
