5-Tier Heavy Duty Garage Shelving Unit 750kg - Boltless Steel Storage Rack for Workshops, Garages & Sheds

Technical Specifications:

• System: 2-unit set
• Dimensions (each unit): 70cm W × 30cm D × 150cm H

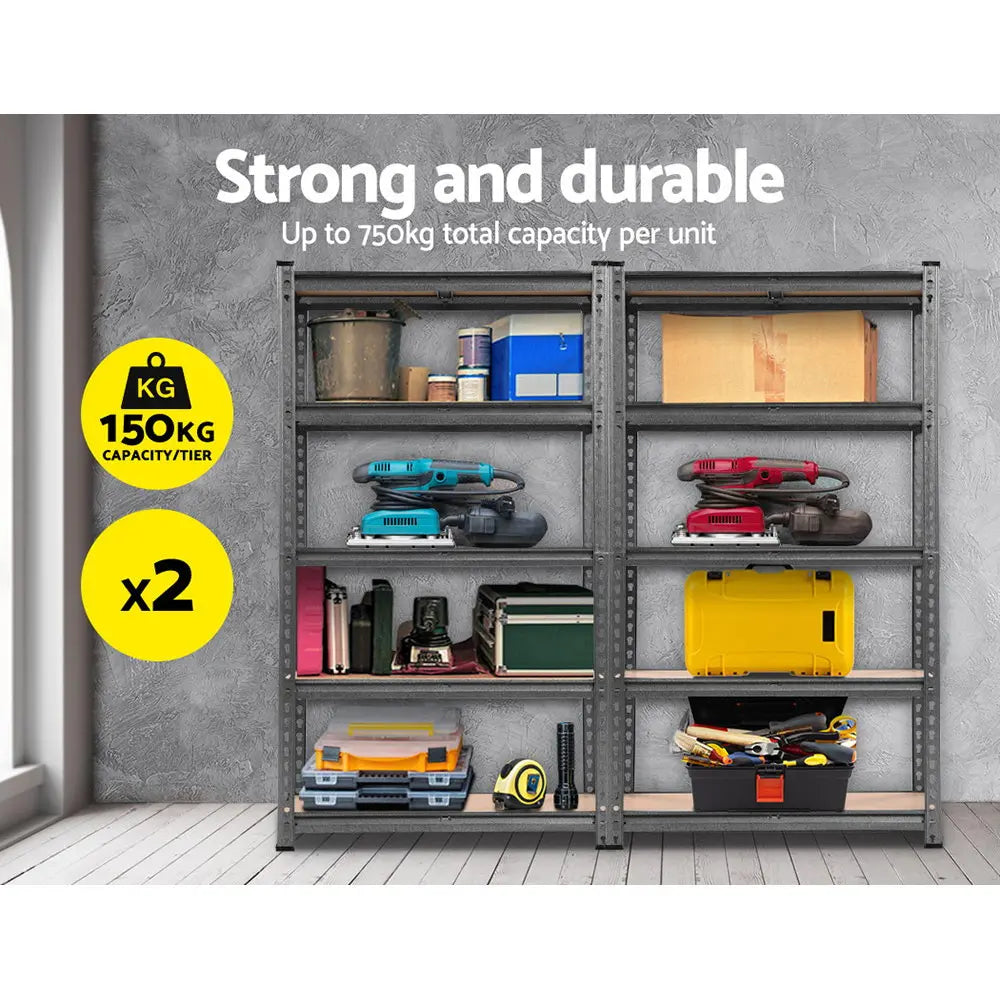

• Capacity per shelf: 150 kg (evenly distributed load)
• Total capacity (per unit): 750 kg across 5 shelves
• Number of tiers: 5 (adjustable height)
• Frame material: Powder-coated steel
• Shelf material: MDF (suitable for indoor, covered environments)
• Colour: Matte charcoal
• Assembly: Boltless - no tools required (~30 min)
• Unit weight: 9 kg per unit
• Warranty: 12 months

⚠️ Load ratings assume evenly distributed weight across the full shelf surface. Point loading (heavy single items concentrated in one spot) reduces effective safe load. Always distribute heavy items across the shelf width.

FAQ's:

Q: Is 150kg per shelf actually enough for heavy garage storage - what can it realistically hold?

A: 150kg per shelf is strong for most home garage applications. To calibrate: a fully loaded medium toolbox runs 15–25kg, a standard 20L paint tin is around 25kg, a typical car battery is 15–20kg, and a petrol generator is 50–80kg depending on size. You can safely load two or three heavy items per shelf and still have capacity to spare. The 750kg total rating (5 × 150kg) means a fully loaded unit can handle a serious workshop's worth of gear. The key rule: distribute weight evenly across the shelf rather than concentrating it in one corner - this applies to all shelving regardless of rating.

Q: The shelves are MDF - is that a problem for a garage environment?

A: MDF shelf boards perform well in standard enclosed garage conditions - sealed concrete floors, rollerdoor or panel door entry, typical Australian temperature range. Where MDF struggles is in genuinely damp or open-air environments: uninsulated sheds with no door seal, garages that flood, or coastal properties with high ambient moisture. If your garage is a standard double or single rollerdoor with concrete floor, MDF boards on a steel frame are a reliable and cost-effective combination used in millions of home garages. If you have ongoing moisture concerns, our all-steel shelving range uses solid steel shelf boards that won't be affected by humidity at all - worth considering as an alternative.

Q: Can I really assemble this in 30 minutes on my own?

A: Most people complete one unit in 25–40 minutes working alone - the boltless (no tools required) design genuinely earns that claim. The process is: lay uprights flat, click cross-beams into the slot positions, drop shelf boards in, stand the unit up. The trickiest moment is standing the unit upright solo if it's fully assembled - having a second person for that final step is helpful, though not essential. The two-unit system (both racks) typically takes 60–90 minutes total. A rubber mallet can help seat stubborn joints but isn't required or included.

Q: Does this shelving need to be wall-anchored and what does that involve?

A: Wall anchoring is optional for standard use but recommended if you're in an area with seismic activity, have young children who might climb the shelves, or are storing very heavy loads near the top tiers. The rack is stable as a freestanding unit under normal conditions. To wall-anchor, you'll need masonry anchors or timber stud fixings (not included) appropriate for your wall type — a hardware store can advise on the right fittings for concrete block, brick, or timber frame walls. It's a straightforward 20-minute addition once the unit is assembled and positioned.

Q: Can the two units be connected or joined together?

A: The two units can be positioned side-by-side to create a continuous wall of shelving, and the uprights can be placed touching for a seamless look. They are not designed to mechanically join to each other - each unit is fully independent and freestanding. This is actually an advantage: you can position them in an L-shape, in two separate zones of the garage, or reconfigure the layout later without disassembling a connected system.
