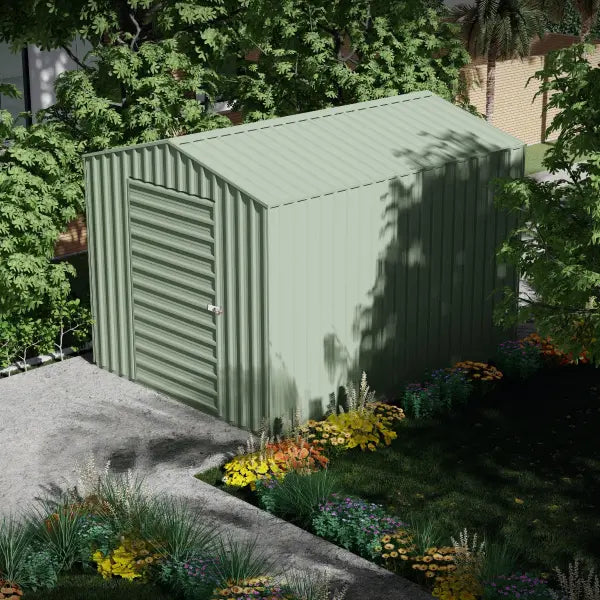

SpanBilt Steel Workshop Building 2.6m × 3.4m — Portal Frame, Gable Roof, Australian Made | UBild 260

FAQ's:

Q: What is a portal frame and why does it matter for a workshop shed?

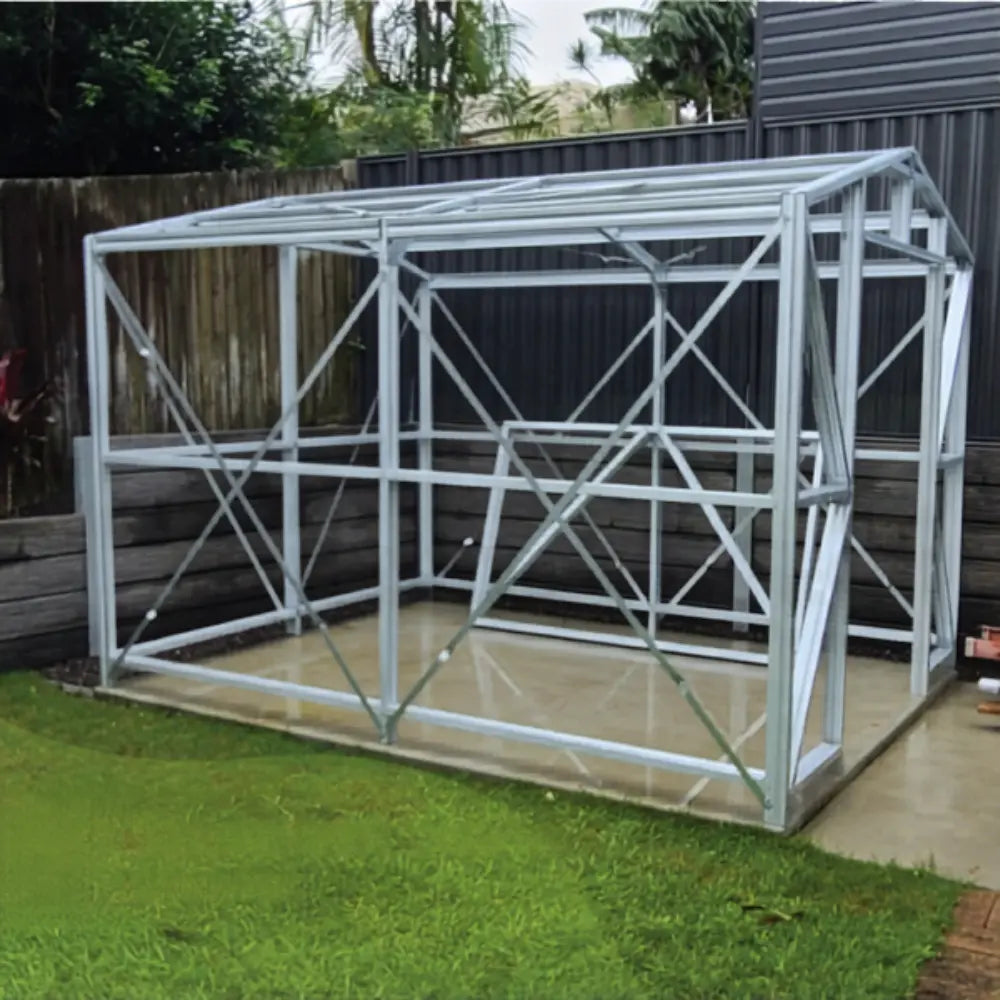

A: A portal frame is a structural steel system where rigid frames span the full width of the building - the same engineering approach used in commercial garages, warehouses and light industrial buildings. Unlike standard garden sheds that use C-section or Z-section steel purlins clipped to lightweight corner posts, a portal frame transfers loads through rigid connections between column and rafter, giving the building exceptional resistance to racking, wind loading and long-term structural movement. In practical terms: a portal frame shed stays square and solid for decades under real-world conditions, while cheaper shed systems can flex, rack and develop leaks at connection points over time. The UBild 260 uses an 80mm × 40mm portal steel system - unusually heavy for a residential backyard building and the reason it carries a 15-year structural warranty.

Q: Do I need council approval for a 2.6m × 3.4m workshop shed in Australia?

A: For a building of this size (~8.8m²), most Australian states classify it as exempt development - no building permit required - provided it meets setback distances from property boundaries and sits on a residential lot. Specific thresholds: NSW typically allows outbuildings under 20m² as exempt in most residential zones; Victoria allows structures under 10m² without a permit in most cases (this shed is 8.8m² and may qualify); Queensland, WA, SA and Tasmania each have their own LGA-specific rules. The 8.8m² floor area is small enough that most councils won't require approval, but you must still meet setback requirements - typically 1m from side and rear boundaries, though this varies. Always confirm with your local council before pouring the slab. If you're in a strata or body corporate property, written approval from the owners corporation is required regardless of LGA rules.

Q: What foundation do I need and does it have to be concrete?

A: A concrete slab is strongly recommended - and in most cases effectively required for a building of this structural integrity and weight (270kg delivered). The slab provides the level, fixed base that the portal frame footings bolt into, and is critical for wind resistance at Region B TC2 rating. Minimum recommended slab specifications are typically 100mm thick reinforced concrete. The slab must be fully cured (28 days from pour) before assembly begins. Anchor bolts are installed into the slab during the pour using SpanBilt's supplied layout template - if anchor bolts are missed, they can be retrofitted using chemical anchors, but a clean pour-in approach is far preferable. If you're organising the slab, contact us before ordering and we can provide the anchor bolt layout specifications so your concretor can include them in the pour.

Q: How difficult is assembly really - do I need a professional builder?

A: Honest answer: this is a proper steel building kit, not a backyard shed you click together over a Saturday morning. It requires two or more capable people, workshop tools (drill, impact driver, spanners, spirit level, ladder, safety glasses), a prepared concrete slab, and a full day's dedicated work. SpanBilt's assembly manual is detailed with numbered diagrams. The most common difficulty customers report is aligning the portal frames before bolting - having three people for this stage (two holding, one bolting) makes it significantly easier. Many customers engage a local handyman with steel structure experience rather than doing it solo. If you hit any stage where things aren't lining up or instructions seem unclear, reach out via our chat and we'll troubleshoot with you in real time - we've helped dozens of customers through the assembly process and can usually solve problems quickly.

Q: Can I add power, lighting, insulation or lining to this workshop?

A: Yes - the UBild 260 Portal Plus is designed as a building that can be fitted out properly. The portal frame structure leaves clean wall and ceiling space for insulation batts, internal wall lining (Gyprock, plywood or similar), LED strip lighting, power outlets and climate control. A licensed electrician will need to run a sub-circuit from your house to the slab before or during construction (conduit can be embedded in the slab pour). Insulation batts can be installed between the frame members once the shell is assembled. Many customers build this workshop as a first stage, then fit it out progressively - power first, then insulation, then lining. The optional PA (pedestrian access) door and window add-ons are available to improve ventilation and natural light, which is worth doing if you're planning to spend serious time inside.

Q: What wind rating does this workshop have and is it suitable for my area?

A: The UBild 260 Portal Plus standard version is wind-rated to Region B TC2 under Australian Standard AS/NZS 1170.2 - covering the vast majority of non-cyclonic Australia, including coastal areas of NSW, Victoria, SA, WA (non-cyclonic) and Queensland (south of the Tropic of Capricorn). A separate cyclonic-rated version of this building is available for Region C and D areas (tropical Queensland, northern WA). If you're unsure of your wind region, your local council building department or a registered building certifier can confirm. Do not install the standard (non-cyclonic) version in a cyclone-designated area - we can advise on the appropriate cyclonic-rated alternative if needed.
